Home » Wall housing » 19“ 09U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035

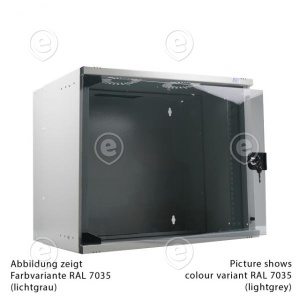

19“ 09U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035

19“ 09U Wall Housing Foldable, Depth 450 mm, 1-Part, Flat Pack, RAL7035

SKU: WGF-1909GR.45
EAN: 4049759279301
Brand:
Unit: kmpl
Qty: Out of Stock
Price: 109,93 €
kmpl
 Add to cart

ARTICLE INFORMATION

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm

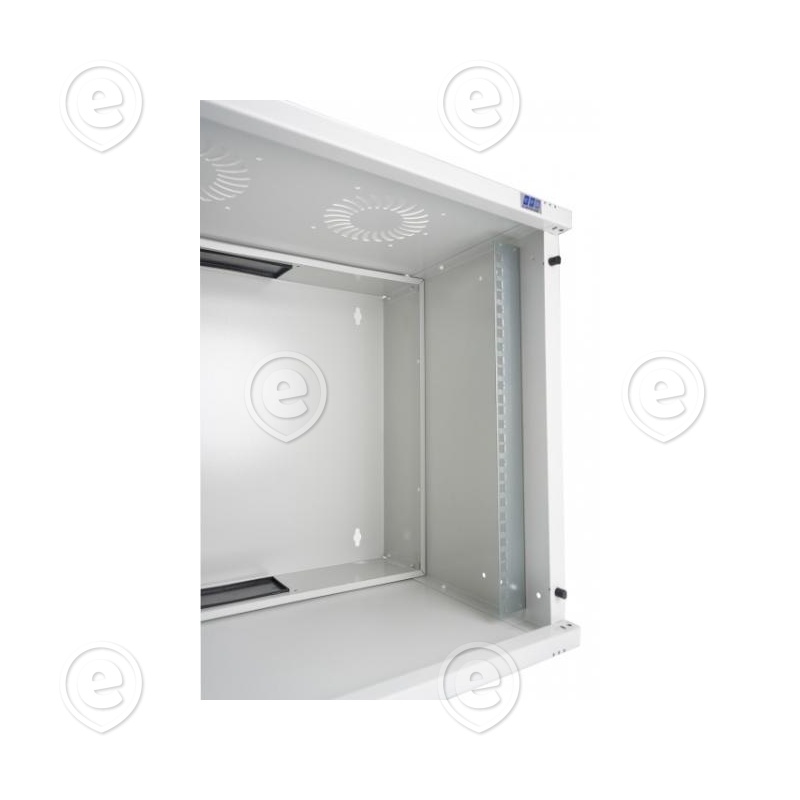

Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle

PRODUCT FEATURES

  • Mounting level
  • Front side
  • Type of profile rail
  • L-shaped
  • Type of ventilation
  • Passive
  • Modular spacing
  • 482.6 mm (19 inch)
  • With roof plate
  • True
  • With earthing
  • True
  • With front door
  • True
  • With sidewall
  • True
  • Demountable
  • True
  • Model
  • With permanent frame
  • Material
  • steel
  • Surface finishing
  • powder coating
  • Degree of protection (IP)
  • IP20
  • Number of doors
  • 1
  • Number of cartons
  • 1

Video



Files

Max load 50kg
Height Rack Unit 9RU
Depth 450mm
Color Grey
