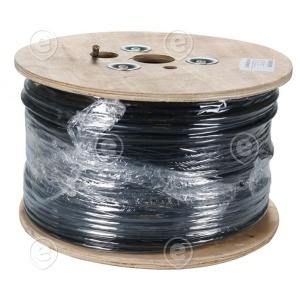

Cat.7 In-/Outdoor cable 1200MHz AWG23 S/FTP, PE jacket, inner Dca, Sw&Or,250m

SKU: EFB99733.250-CPR
EAN: 4049759253738
Brand:

Unit: pakk
Qty: Out of Stock

Price: 391,23 €

Compare

ARTICLE INFORMATION

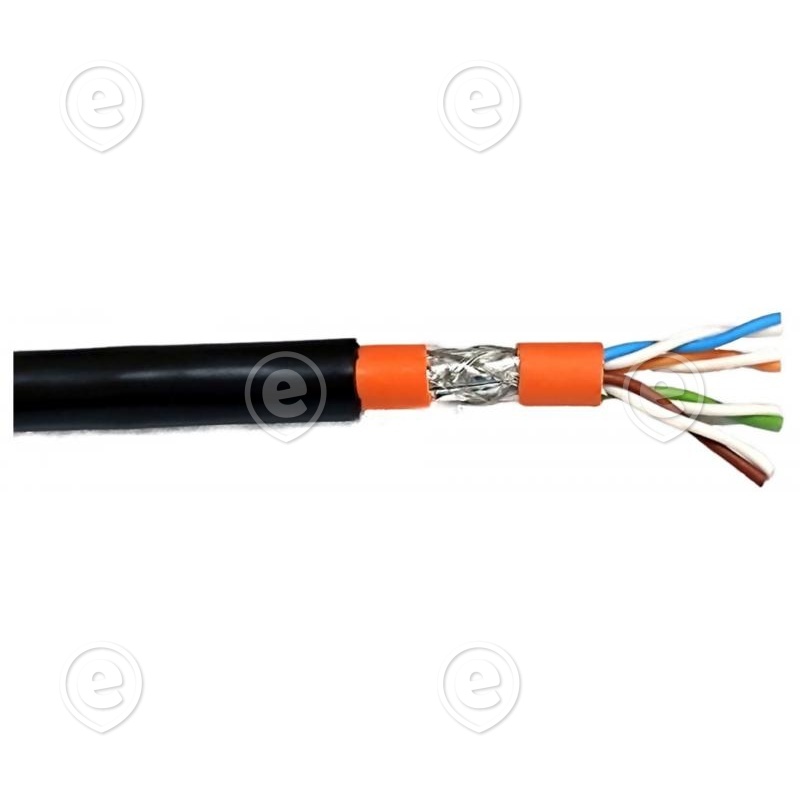

The Cat.7 S/FTP indoor/outdoor cable is characterised by the cable construction 4x2xAWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1 standard and Construction Products Regulation (BauPVO) Euroclass Dca. The cable is suitable for installations in dry or damp rooms, outdoors or underground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Technical properties

AWG-size:	23/1
Bending radius (dynamic):	8 x OD
Bending radius (static):	7 x OD
Cable:	EN 50288-4-1 IEC 61156-5
Cable Construction:	S/FTP
Cabling standards:	EN 50173-1 ISO/IEC 11801
Category:	7
Characteristic impedance:	100 ± 15 Ohm
Conductor category:	Class 1 = solid
Conductor material:	Cu, tinned
Core identification:	Colour
Core insulation:	foam-skin PE
Coupling attenuation:	80 dB
Coupling attenuation Type:	Type 1
Diameter conductor:	0.56 mm
Directive/Regulation:	REACH 1907/2006/EC RoHS 2011/65/UE
Flame retardant:	acc. EN 60332-1 acc. IEC 60754-2 acc. IEC 61034
Halogen free:	acc. EN 60754 acc. EN 60754-1/2
Halogen free (according to EN 60754-1/2):	True
Installation standard:	EN 50174
Loop resistance:	171.2 Ohm/km
Low smoke:	acc. EN 61034
Material outer sheath:	PE + LSZH
Max. Freuqency:	1200 MHz
NVP value:	76 %
Operating temperature, storage:	-30 – 70 °C
Permitted cable outer temperature after assembling without vibration:	-30 – 70 °C
Permitted cable outer temperature during assembling/handling:	0 – 50 °C
PoE:	acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE yes
Resistance unbalance:	3 %
Screen over stranding:	foil + braid
Screen over stranding element:	Foil
Separation class acc. EN50174-2:	D
Stranding element:	Pairs
Test voltage DC, 1 min:	1000 V
Transmission standards:	IEEE 802.3 10Mbit to 10Gbit
UV resistance:	yes
