Co-Location Rack PRO, 4 x 9U, 800x1000 mm, F+R 1-Part Perforated, RAL9005
picture picture picture

Co-Location Rack PRO, 4 x 9U, 800x1000 mm, F+R 1-Part Perforated, RAL9005

SKU: PRO-CL4-4280TS.P1
EAN: 4049759259860
Brand:
Unit: kompl.
Qty: Out of Stock
Price: 5030,06 €
kompl.
 Add to cart

19" network cabinet according to DIN 41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated

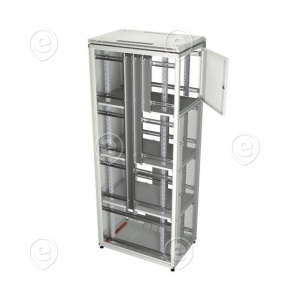

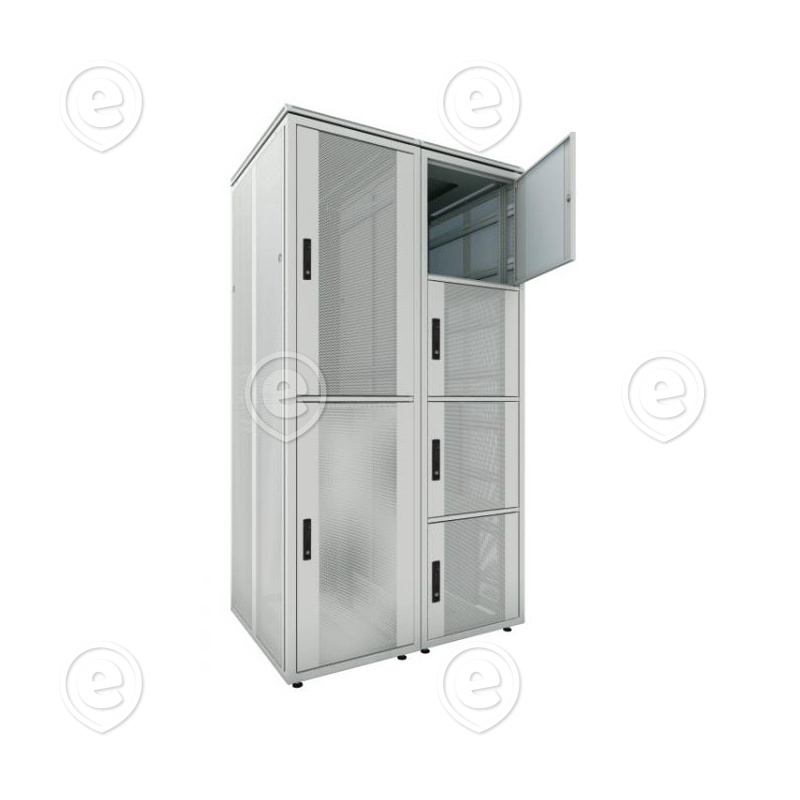

1, 2, 3 or 4 boxes for individual access
Every box with independent cable ducts left and right for cable entry from top or bottom
Inside front and rear 4 x 19" profiles per box (2 front, 2 rear), galvanised, step-less depth-adjustable
Numbering of height units at the profiles
Front- and rear doors steel, perforated, 1-part
Doors with 1-point turning handle, lockable, incl. profile half-cylinder acc. to DIN 18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop left and right-sided possible
Detachable side walls with 2 x latch locking (lock equal to door lock)
Side walls optional available perforated
Cabinets stackable side-by-side with and without side wall via baying set PRO-ANR01

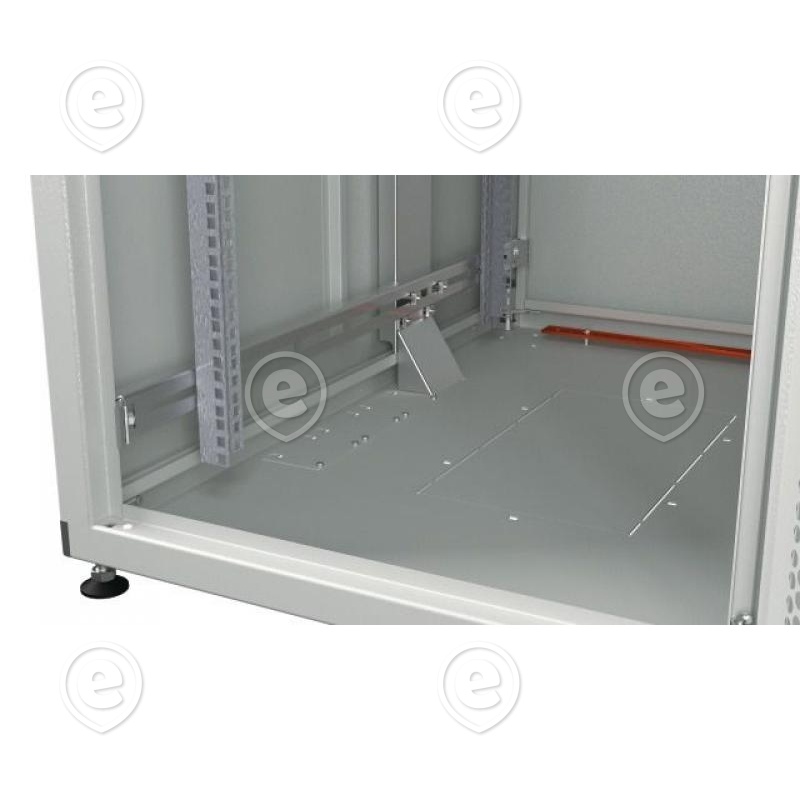

Roof and bottom with covered cutouts for cable entry (left/right) and for accommodation of fan unit PRO-LFD02BO.xx

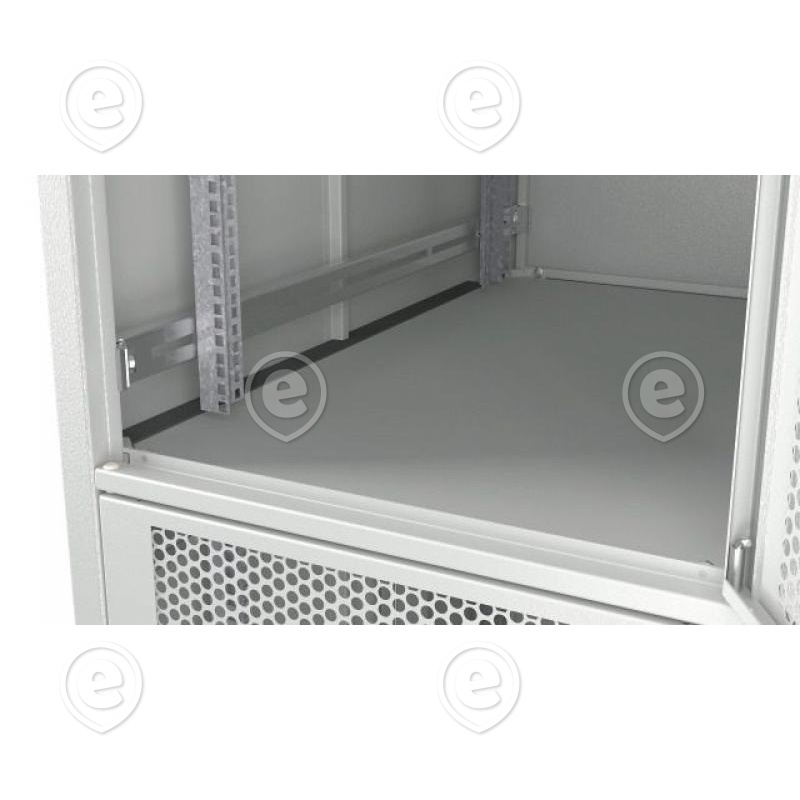

Intermediate bottoms sealed to side walls
Internal earthing of all cabinet parts
Max. load 600 kg
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20
Included accessories: 1 x set of captive nuts (PU 20 pcs.), 4 x Leveling feet M12, 2 x key
Delivery in transport packaging on disposable pallet

Max load 600kg
Height Rack Unit 42RU
Standard IP20
Depth 1000mm
Type Perforated door
Color Black
