Akustiline seadmekapp ratastel 15Ux600x800mm
Tootekood: 692615N-AK-GR
EAN: 4049759172008
Kaubamärk:
Ühik: kmpl
Laoseis: Tellimisel
EAN: 4049759172008
Kaubamärk:
Ühik: kmpl
Laoseis: Tellimisel
Hind:
2938,66 €

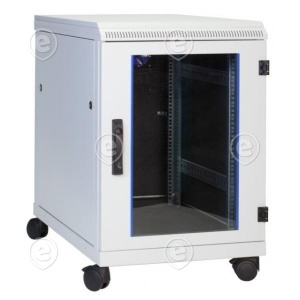

19" Network cabinet acc. to DIN41494 as roll container or undercounter housing for office environments
High-quality acoustical insulated variant for ergonomic work, suitable for installation directly at the working place
Attractive, stable MDF plate at the upper side enables parking of further devices (printer etc.) on the cabinet
Use of sound insulation mats in studio technology in thickness 20, 40 und 50 mm, equal to the acoustical problem zones in cabinets
Attenuation (typ.) 8 .. 25 dB (frequency-dependent)

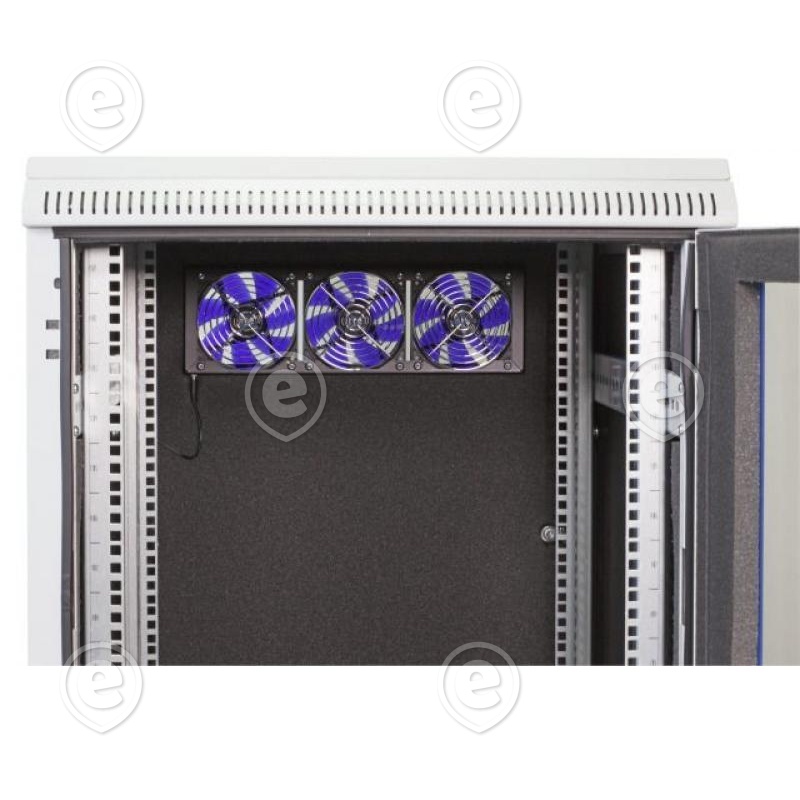

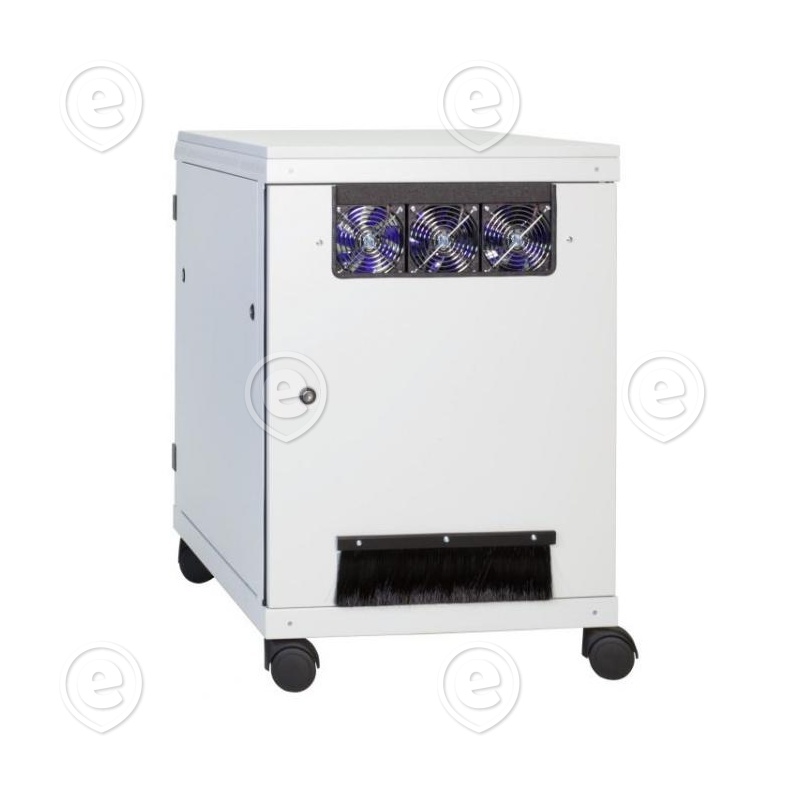

Especially decoupled, smooth runing "Silent" fans at the rear wall guide the heat to outside, converted air volume 294 m³/h
Fresh air feeding from bottom-front via filter grid
Cable entry rear-sided below via sound bridge and brush
Inside 4 x 19" rails (2 front, 2 rear), depth-adjustable in 25 mm raster
Front door with window of certified safety glass (5 mm), 1-part, with turning handle and profile half-cylinder acc. to DIN18252, PHC exchangeable by customer
Rear door with 1 x latch, lock equal to door lock
Side walls detachable with 2 x latch, lock equal to door lock
Max. load 300 kg (castors) / 600 kg (leveling feet)
Dimensions (W x D x H) 600 x 800 x 900 mm
Paint finish und MDF plate RAL7035, light grey
Delivery incl. set of 4 castors (2 with brake), 2 x key, 1 x power supply for fans
High-quality acoustical insulated variant for ergonomic work, suitable for installation directly at the working place
Attractive, stable MDF plate at the upper side enables parking of further devices (printer etc.) on the cabinet
Use of sound insulation mats in studio technology in thickness 20, 40 und 50 mm, equal to the acoustical problem zones in cabinets
Attenuation (typ.) 8 .. 25 dB (frequency-dependent)
Especially decoupled, smooth runing "Silent" fans at the rear wall guide the heat to outside, converted air volume 294 m³/h
Fresh air feeding from bottom-front via filter grid

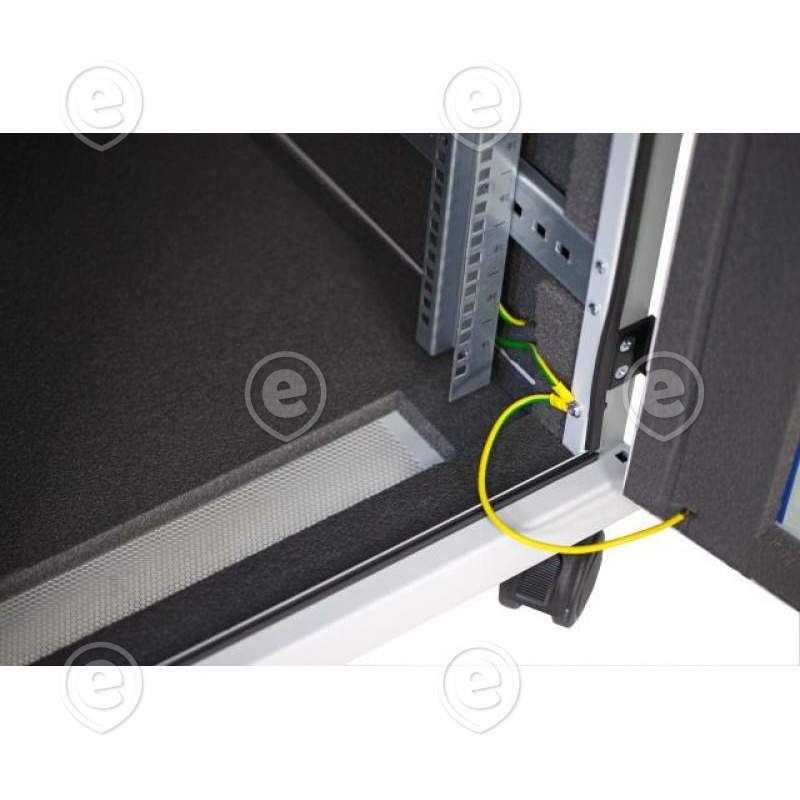

Cable entry rear-sided below via sound bridge and brush
Inside 4 x 19" rails (2 front, 2 rear), depth-adjustable in 25 mm raster
Front door with window of certified safety glass (5 mm), 1-part, with turning handle and profile half-cylinder acc. to DIN18252, PHC exchangeable by customer
Rear door with 1 x latch, lock equal to door lock
Side walls detachable with 2 x latch, lock equal to door lock
Max. load 300 kg (castors) / 600 kg (leveling feet)
Dimensions (W x D x H) 600 x 800 x 900 mm
Paint finish und MDF plate RAL7035, light grey
Delivery incl. set of 4 castors (2 with brake), 2 x key, 1 x power supply for fans
