home » Kaablid rullis/kastis » INFRALAN® U-DQ(ZN)BH 12G 50/125μ, OM3, LSZH black CPR Dca

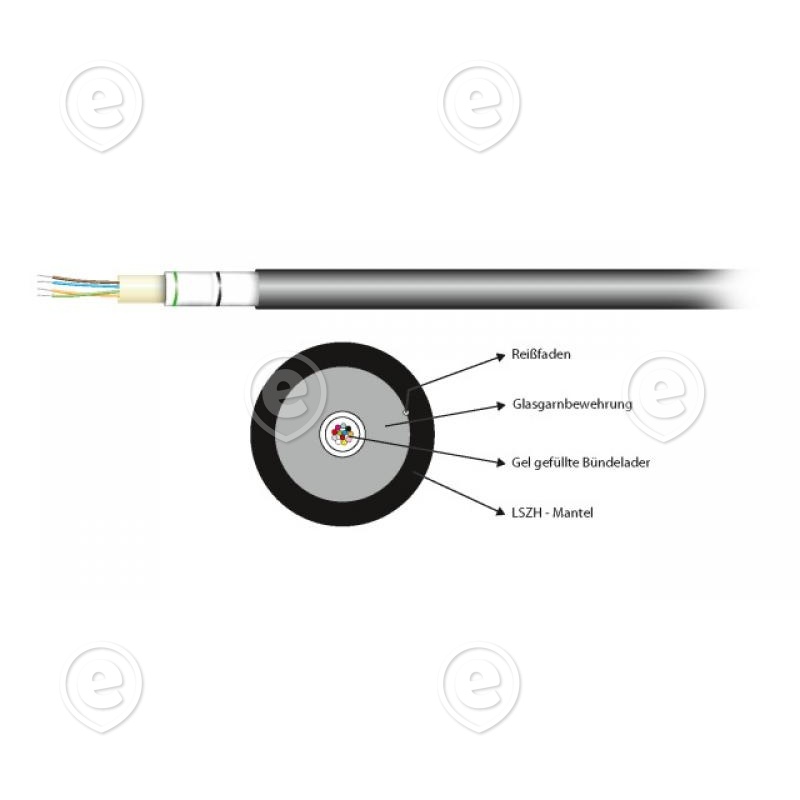

INFRALAN® U-DQ(ZN)BH 12G 50/125μ, OM3, LSZH black CPR Dca

INFRALAN® U-DQ(ZN)BH 12G 50/125μ, OM3, LSZH black CPR Dca

Tootekood: EFB54512.1L-CPR
EAN: 4049759180621
Kaubamärk:
Ühik: m
Laoseis: Tellimisel
Hind: 1,98 €
m
 Lisa korvi

ARTICLE INFORMATION

Application:
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)

Characteristics:
Universale cable
Suitable for connector assembly

The cable diameter can vary

PRODUCT FEATURES

  • Fibre type
  • Multimode 50/125
  • Fibre category
  • OM3
  • Application
  • indoor/outdoor
  • Blow in
  • No
  • Radial water blocking
  • False
  • Longitudinal water blocking
  • True
  • Cable metal free
  • True
  • With rodent protection
  • True
  • Circuit integrity
  • NoNono
  • Crush resistance
  • 1500 N/dm
  • Longitudinally watertight
  • 3/24 m/h
  • Type of tube
  • Central loose tube
  • Tube Ø
  • Up to 12 fibers: 3.5 ; Up to 24 fibers: 4.0 mm
  • Fiber marking
  • Colour
  • Tube marking
  • Colour
  • With strain relief
  • True
  • Armouring
  • True
  • Material outer sheath
  • LSZH
  • Euro Class
  • Dca
  • Colour outer sheath
  • black
  • Flame retardant
  • According to EN 60332-1-2
  • Halogen free
  • acc. EN 60754-1/2
  • Low smoke
  • acc. to EN 61034-2
  • Oil resistant
  • No
  • Resistant to chemicals
  • False
  • Temperature Range (Operation)
  • -20 – 60 °C
  • Temperature Range (Storage)
  • -25 – 70 °C
  • Temperature Range (Installation)
  • -5 – 50 °C
  • Rayleigh Backscatter Coefficient 850nm
  • 1.483
  • Rayleigh Backscatter Coefficient 1300nm
  • 1.478
  • IL max. (dB/km) 850nm
  • 2.5
  • IL max. (dB/km) 1300nm
  • 0.7
  • Harmonized standard
  • EN 50575
  • Transmission standards
  • IEEE 802.3 10Mbit to 100Gbit
