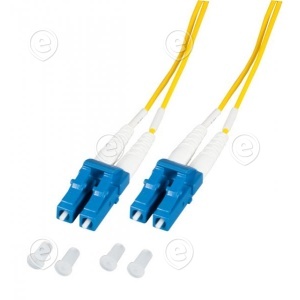

Jätkukaabel SM 1,2mm LC/LC duplex 2x9/125 2m

Jätkukaabel SM 1,2mm LC/LC duplex 2x9/125 2m

Tootekood: EFBO0350.2-1.2
EAN: 4049759169602
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 11,53 €
tk
 Lisa korvi

ARTICLE INFORMATION

The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.

Characteristics
Space-saving installation due to the small outer diameter
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Connector in colour of category (aqua, erika-violet or blue)
LC connector in Compact design
EFB fiber connectors meet the quality classes
Grade B/2 according to IEC-61753-1 for Singlemode
Grade A/1 according to IEC-61753-122-2 (Draft) for Multimode
pre-coded
100% tested and with individuell measuring protocol

PRODUCT FEATURES

  • Fibre type
  • Singlemode
  • Category
  • OS2 acc. to ITU-T G.652.D
  • Bend optimized fiber
  • no
  • Number of fibres
  • 2
  • Anti-kink sleeve
  • put-on
  • Type of connector connection 1
  • LC-Duplex
  • Connector colour 1
  • blue
  • Type of connector connection 2
  • LC-Duplex
  • Connector colour 2
  • blue
  • Min. Bending radius (Static)
  • 10xOD
  • Min. Bending radius (Dynamic)
  • 20xOD
  • Cable type
  • Simplex
  • Cable Construction
  • Duplex
  • Cable Ø
  • 1.2 mm
  • Colour outer sheath
  • yellow
  • Jacket Material
  • LSZH
  • Flame retardant
  • According to EN 50265-2-1
  • Halogen free
  • acc. IEC60754-1
  • Operating Temperature
  • -20 – 75 °C
  • Storage Temperature
  • -20 – 85 °C
  • Insertion loss 1310nm
  • <0.25 dB
  • Quality class singlemode
  • B/2 acc. IEC 61753-1
  • Cabling standard
  • ISO/IEC 11801;EN-50173-1
  • Connector Conform to Standard
  • IEC 61754-20
  • Cable Conform to Standard
  • IEC 60793-2
Pistikute valik LC(UPC)-LC(UPC)
Kiudude arv 2
Pikkus 2,0m
Standard OS2
Tüüp UPC
Värv Kollane
