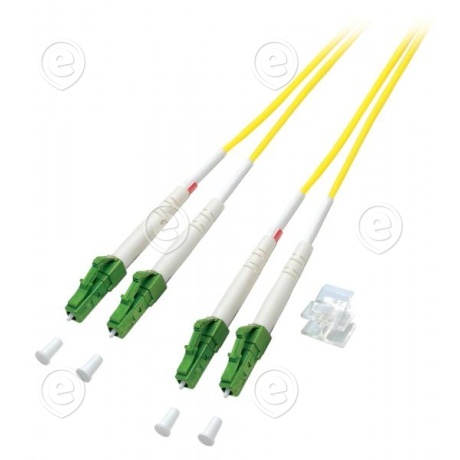

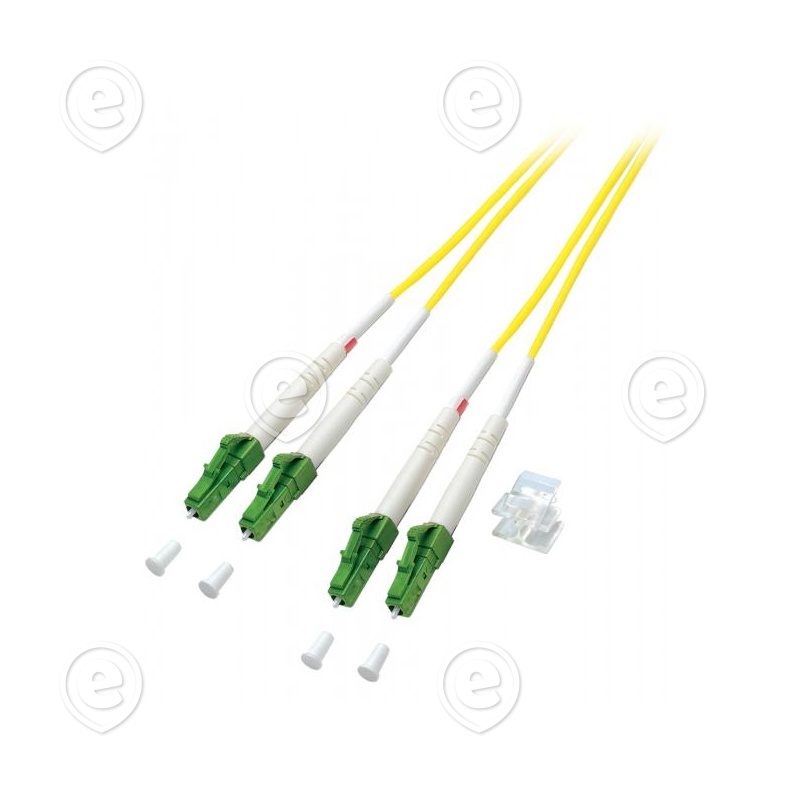

Jätkukaabel SM LC/APC8° - LC/APC8° 9/125 10m

Tootekood: EFBO0381.10
EAN: 4049759056254
Kaubamärk:

Ühik: tk
Laoseis: Tellimisel

Hind: 15,15 €

Võrdle

PC-version:	True
APC version Connector 1:	8°
APC version Connector 2:	8°
Anti-kink sleeve:	put-on
Bend optimized fiber:	no
Cable Conform to Standard:	IEC 60793-2
Cable Construction:	Duplex
Cable type:	I-V(ZN) H
Cable Ø:	2.0 mm
Category:	OS2 acc. to ITU-T G.652.D
Colour outer sheath:	yellow
Connector Conform to Standard:	IEC 61754-20
Connector colour 1:	green
Connector colour 2:	green
Fibre type:	Single mode 9/125
Flame retardant:	According to EN 50265-2-1
Halogen free:	acc. IEC60754-1
Halogen free (according to EN 50267-2-3):	True
Insertion loss 1310nm:	< 0.3 dB
Low smoke:	acc. IEC61034-1
Material outer sheath:	LSZH
Max. Tension:	160 N
Min. Bending radius (Dynamic):	20xOD
Min. Bending radius (Static):	10xOD
Number of fibres:	2
Operating Temperature:	-20 – 75 °C
Quality class singlemode:	B/2 acc. IEC 61753-1
Storage Temperature:	-20 – 85 °C
Type of connector connection 1:	LC-Duplex
Type of connector connection 2:	LC-Duplex
