Jätkukiud SM LC/APC 9/125 2,0m OS2 (12tk/kmpl)

Jätkukiud SM LC/APC 9/125 2,0m OS2 (12tk/kmpl)

Tootekood: EFBO0482.2
EAN: 4049759063900
Kaubamärk:
Ühik: kompl.
Laoseis: Tellimisel
Hind: 40,83 €
kompl.
 Lisa korvi

ARTICLE INFORMATION

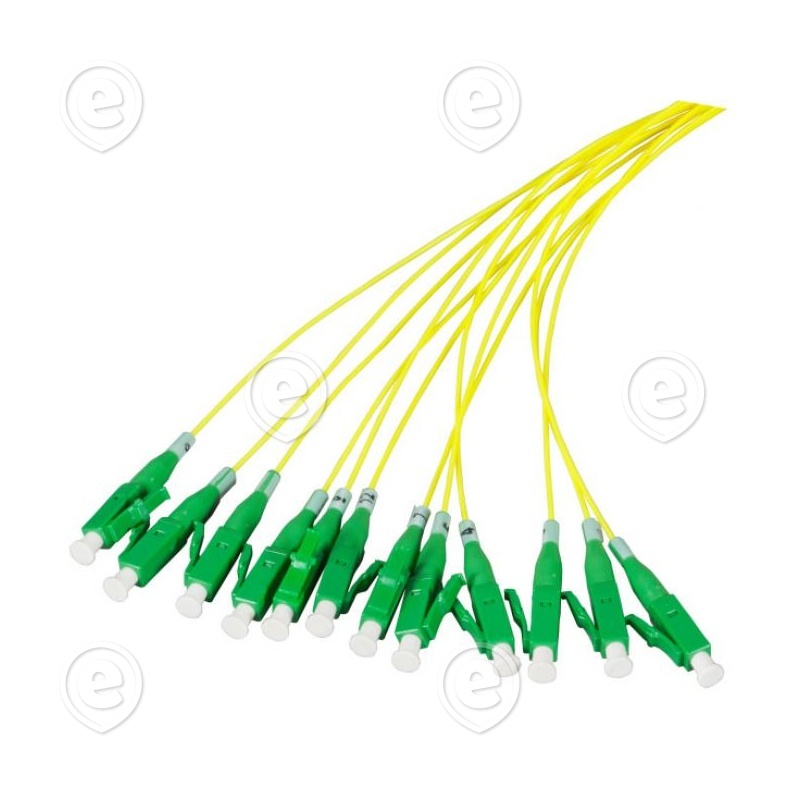

The LC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.

PRODUCT FEATURES

  • Type
  • fiber pigtail
  • Core type
  • semi-tight tubes
  • Anti-kink sleeve
  • put-on
  • Max. Tension
  • 3 N
  • Mion. Bending Radius Static
  • 10xOD
  • Minimaler Biegeradius Dynamic
  • 20xOD
  • Outer Diameter
  • 0.9 mm
  • Jacket Material
  • LSZH
  • Length
  • 2.0 m
  • Operating Temperature
  • -20 – 70 °C
  • Connector Conform to Standard
  • IEC61754-20
  • Cable Conform to Standard
  • IEC60793-2
Pikkus 2,0m
Standard OS2
Tüüp APC
Värv Kollane
