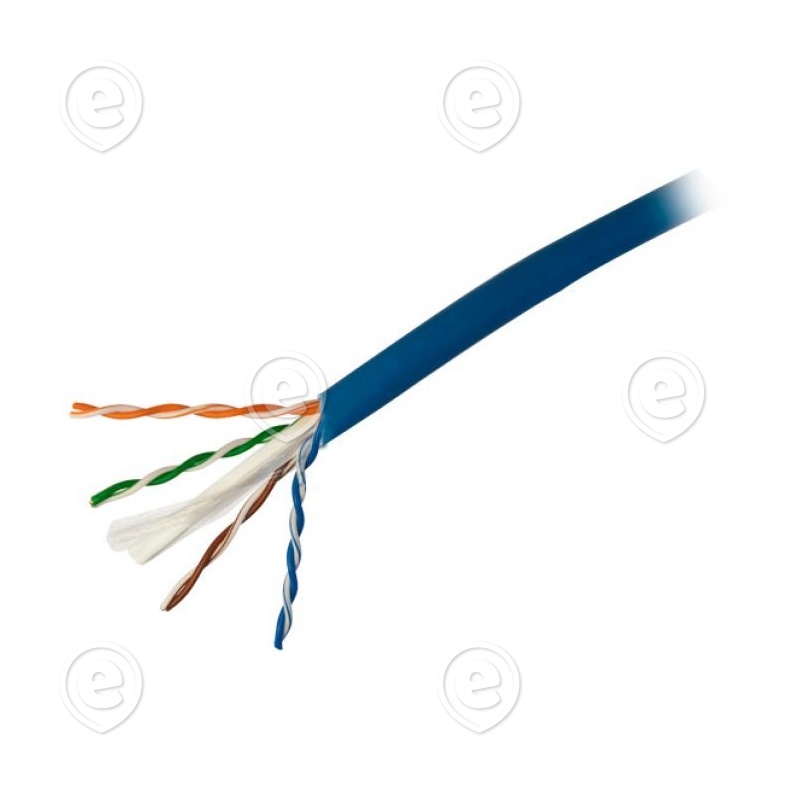

Keerdpaarkaabel INFRALAN U/UTP CAT6A 500MHz LSZH , klass B2ca 500m/rull

Keerdpaarkaabel INFRALAN U/UTP CAT6A 500MHz LSZH , klass B2ca 500m/rull

Tootekood: EFB99965.500-CPR
EAN: 4049759227258
Kaubamärk:
Ühik: rull
Laoseis: Tellimisel
Hind: 484,73 €
rull
 Lisa korvi

ARTICLE INFORMATION

The INFRALAN® U/UTP Cat.6A installation cable is designed for transmissions up to 500MHz and complies with Cat.6A. With this cable, transmission rates of up to 10Gbit Ethernet are possible. Due to the small outer diameter of only 6.6 mm, the cable is also suitable for feed-throughs in narrow cable ducts. Thanks to the B2ca standard according to the Construction Products Regulation and its cable structure of 4x2xAWG23/1, the cable can be used in all areas of installation in buildings.

Areas of application:
Primary (Campus)
Secondary (Riser)
Tertiary (Horizontal)


PRODUCT FEATURES

  • Cable silicone free
  • True
  • UV resistant
  • NoNono
  • Bending radius (dynamic)
  • 65 mm
  • Bending radius (static)
  • 65 mm

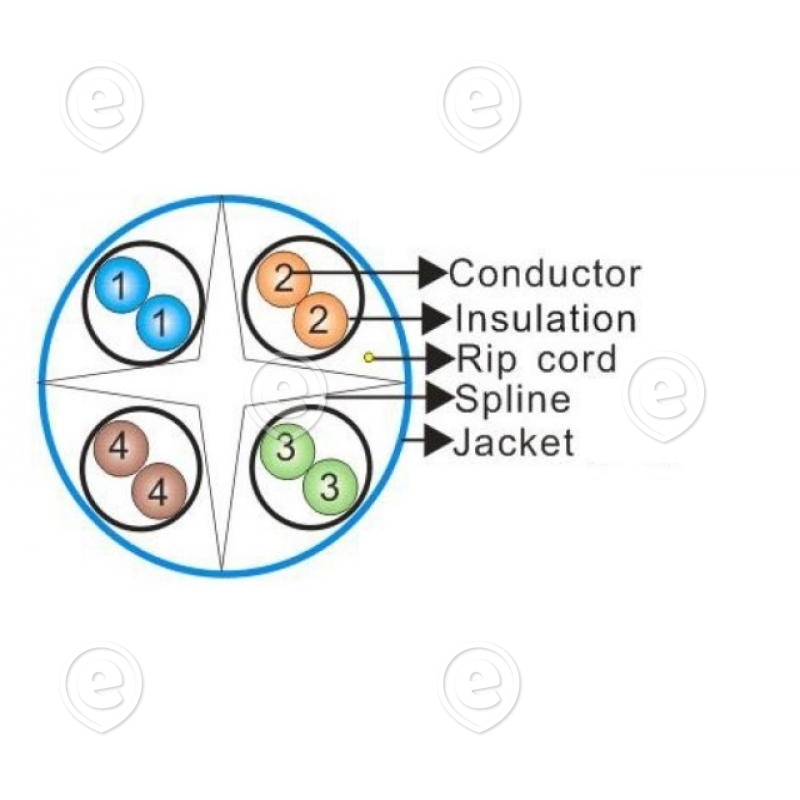

  • Cable structure
  • U/UTP
  • Category
  • 6A (IEC)
  • Conductor category
  • Kl.1 = single wire
  • Conductor material
  • CU, tinned
  • AWG-size/quantity of cores
  • 23/1
  • Diameter conductor
  • 0.57 mm
  • Nominal cross section conductor
  • 0.26 mm²
  • Screen over stranding
  • without
  • Stranding element
  • pairs
  • Screen over stranding element
  • without
  • Core insulation
  • foam-skin PE
  • Core identification
  • colour
  • Material outer sheath
  • LSZH
  • Euro class
  • B2ca
  • Flame retardant
  • According to IEC/EN 60332-1-2;According to IEC/EN 60332-3-24
  • Halogen free
  • acc. EN 60754-1/2
  • Low smoke
  • acc. to EN 61034-2
  • Operating temperature, flexible
  • 0 – 60 °C
  • Operating temperature, fix
  • -15 – 75 °C
  • Operating temperature, storage
  • -15 – 75 °C
  • PoE
  • acc. to IEEE 802.3at;acc. to IEEE 802.3af;yes;PoE+;UPoE
  • NVP value
  • 68.2 %
  • Loop resistance
  • 164 Ohm/km
  • Resistance unbalance
  • ≤ 5 %
  • Insulation resistance (500V)
  • ≥ 5000 MOhm/km
  • Test voltage DC, 1 min
  • 500 V
  • Capacity to earth
  • 330 pF/km
  • Separation class acc. EN50174-2
  • C
  • Coupling attenuation
  • ≥ 50 dB
  • Max. Freuqency
  • 500 MHz
  • Cabling standards
  • EN 50173-1;ISO/IEC 11801
  • Installation standard
  • EN 50174
  • Harmonised Standard
  • EN 50575
  • Directive/Regulation
  • RoHS 2011/65/UE;REACH 1907/2006/EC
  • Transmission standards
  • IEEE 802.3 10Mbit to 10Gbit
  • Cable
  • IEC 61156-5
