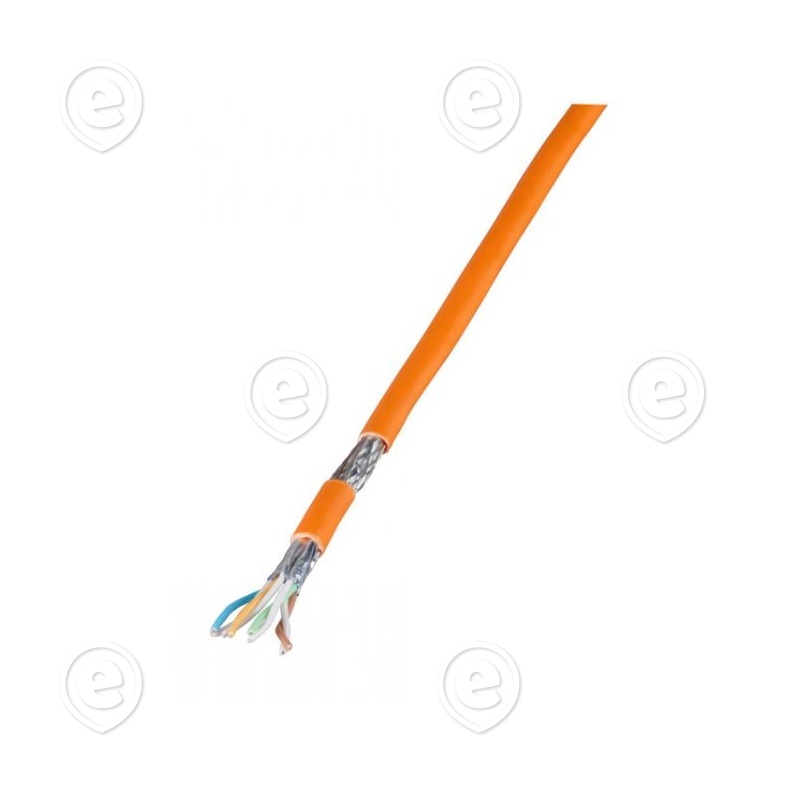

Keerdpaarkaabel INFRALAN® Cat.7 1000MHz AWG23 CPR Cca, S/FTP PIMF , 500m/rull

Keerdpaarkaabel INFRALAN® Cat.7 1000MHz AWG23 CPR Cca, S/FTP PIMF , 500m/rull

Tootekood: EFB99981.500-CPR
EAN: 4049759180874
Kaubamärk:
Ühik: rull
Laoseis: Tellimisel
Hind: 469,41 €
rull
 Lisa korvi

ARTICLE INFORMATION

The INFRALAN® installation cable 99981.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible. Additional this Cable is certified by GHMT PVP program in simplex version.

PRODUCT FEATURES

  • Cable silicone free
  • yes
  • Bending radius (dynamic)
  • ≥ 60 mm
  • Bending radius (static)
  • ≥ 30 mm
  • Cable structure
  • S/FTP
  • Category
  • 7
  • Conductor category
  • Kl.1 = single wire
  • Conductor material
  • CU, tinned
  • AWG-size/quantity of cores
  • 23/1
  • Diameter conductor
  • 0.56 mm
  • Nominal cross section conductor
  • 0.26 mm²
  • Screen over stranding
  • braiding
  • Stranding element
  • pairs
  • Screen over stranding element
  • foil + braid
  • Core insulation
  • foam-skin PE
  • Core identification
  • colour
  • Material outer sheath
  • FRNC
  • Euro class
  • Cca
  • Flame retardant
  • According to IEC/EN 60332-3-24
  • Halogen free
  • yes
  • Low smoke
  • acc. to EN 61034-2
  • Operating temperature, flexible
  • 0 – 50 °C
  • Operating temperature, fix
  • -20 – 60 °C
  • Operating temperature, storage
  • 0 – 50 °C
  • PoE
  • yes;PoE+;UPoE
  • NVP value
  • 78 %
  • Loop resistance
  • ≤ 146 Ohm/km
  • Resistance unbalance
  • ≤ 2 %
  • Dielectric strength DC
  • 1 kV/1 min
  • Insulation resistance (500V)
  • ≥ 5000 MOhm/km
  • Capacity to earth
  • ≤ 1600 pF/km
  • Impedance
  • 100 ± 5 Ohm
  • Transfer impedance at 1MHz
  • ≤ 10 mOhm/m
  • Transfer impedance at 10MHz
  • ≤ 10 mOhm/m
  • Transfer impedance at 30MHz
  • ≤ 20 mOhm/m
  • Transfer impedance at 100MHz
  • ≤ 30 mOhm/m
  • Separation class acc. EN50174-2
  • D
  • Coupling attenuation Type
  • Type 1b
  • Coupling attenuation
  • ≥ 80 dB
  • Max. Freuqency
  • 1000 MHz
  • Cabling standards
  • EN 50173-1;ISO/IEC 11801
  • Installation standard
  • EN 50174
  • Harmonised Standard
  • EN 50575
  • Directive/Regulation
  • RoHS 2011/65/UE;REACH 1907/2006/EC
  • Transmission standards
  • IEEE 802.3 10Mbit to 10Gbit
  • Cable
  • IEC 61156-5;EN 50288-4-1
