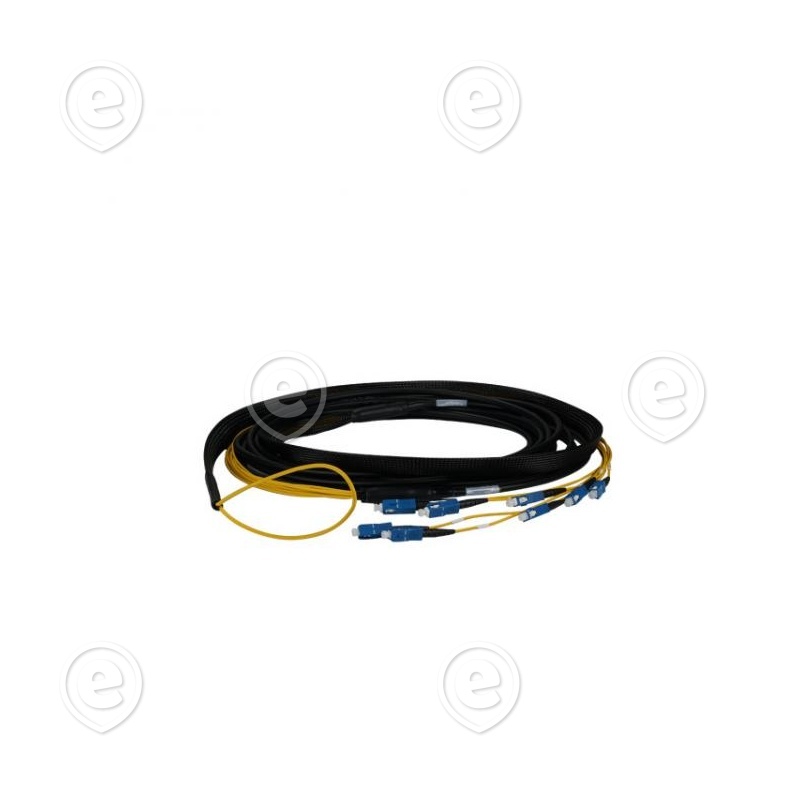

Magistraalkaabel U-DQ(ZN)BH 4E 9/125, SC/SC OS2 50m

Magistraalkaabel U-DQ(ZN)BH 4E 9/125, SC/SC OS2 50m

Tootekood: EFBO8301L50OS2
EAN: 4049759275570
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 240,50 €
tk
 Lisa korvi

ARTICLE INFORMATION

EFB sets standards in high quality

For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with LC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.

Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol

Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test
Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided
Delivery on both sides with fabric hose as drawing-in tube

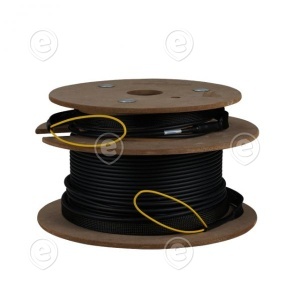

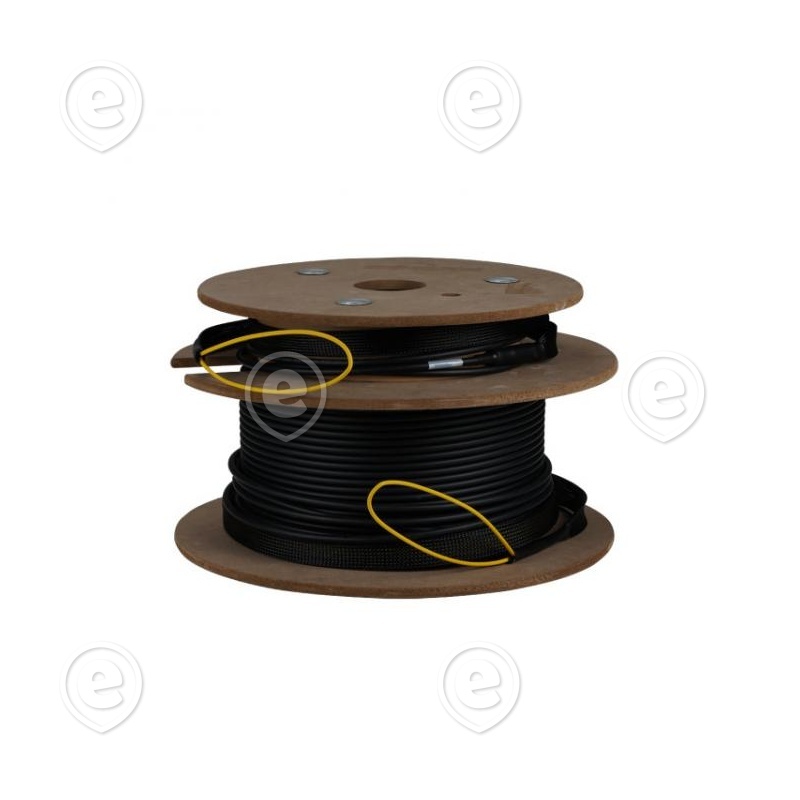

Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm

PRODUCT FEATURES

  • Fibre type
  • Singlemode
  • Category
  • OS2 acc. to ITU-T G.652.D
  • Bend optimized fiber
  • no
  • Number of fibres
  • 4
  • Anti-kink sleeve
  • put-on
  • Type of connector connection 1
  • 4 x SC
  • Connector colour 1
  • blue
  • Type of connector connection 2
  • 4 x SC
  • Connector colour 2
  • blue
  • Max. Tension
  • 200 N
  • Min. Bending radius (Static)
  • 90 mm
  • Min. Bending radius (Dynamic)
  • 180 mm
  • Cable type
  • U-DQ (ZN) BH
  • Cable Construction
  • Multifiber
  • Cable Ø
  • 6.0 mm
  • Colour outer sheath
  • black
  • Jacket Material
  • LSZH
  • Dimension Cable divider
  • 11.5 x 50 mm
  • Operating Temperature
  • 0 – 50 °C
  • Storage Temperature
  • -20 – 70 °C
  • Insertion loss 1310nm
  • <0.3 dB
  • Quality class singlemode
  • B/2 acc. IEC 61753-1
  • Connector Conform to Standard
  • IEC 61754-20
  • Cable Conform to Standard
  • IEC 60793-2
  •
  •

Kiudude arv 4
Pistikute valik SC(UPC)-SC(UPC)
Pikkus 50,0m
Standard OS2
Tüüp UPC
