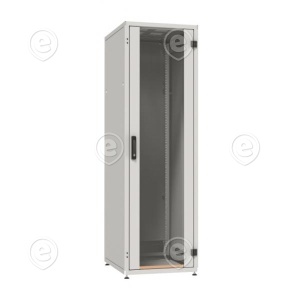

Seadmekapp 42U 1963x600x600 mm, klaasuks+metalluks, RAL7035
Tootekood: PRO-4266GR.G1SV
EAN: 4049759218263
Kaubamärk:
Ühik: kmpl
Laoseis: Tellimisel
EAN: 4049759218263
Kaubamärk:
Ühik: kmpl
Laoseis: Tellimisel
Hind:
1208,63 €
ARTICLE INFORMATION
19" network cabinet according to DIN41494Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front door with window of certified safety glass (thickness 5 mm)
Front door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, shortened, with 2 x latch locking (lock equal to door lock), 3U panel for cable entry below (690 x 67 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X)
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
PRODUCT FEATURES
- Type of front door
- Glass door 1-part
- Type of back door
- Steel door 1-part
- Mounting level
- Front and rear
- Model
- With permanent frame
- Modular spacing
- 482,6 mm (19 inch)
- Type of profile rail
- Crank
- Type of ventilation
- Passive
- With roof plate
- True
- With earthing
- True
- With front door
- True
- With backside door
- True
- With sidewall
- True
- With socket
- False
- Material
- Steel
- Surface finishing
- With powder coating
- Degree of protection (IP)
- IP20
- Demountable
- True
- Number of cartons
- 1
| Kandevõime | 1000kg |
| Kõrgus U-des | 42U |
| Standard | IP20 |
| Sügavus | 600mm |
| Tüüp | Klaasuks+metalluks |
| Värv | Hall |
