home » Seinakapid » Seinakapp 4U kõrgusega, sügavus 450 mm, tööriistavaba komplekteerimine, RAL7035

Kaup laos

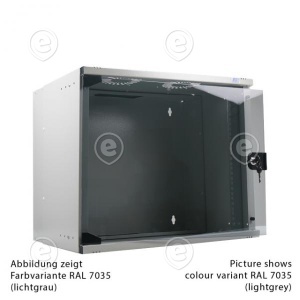

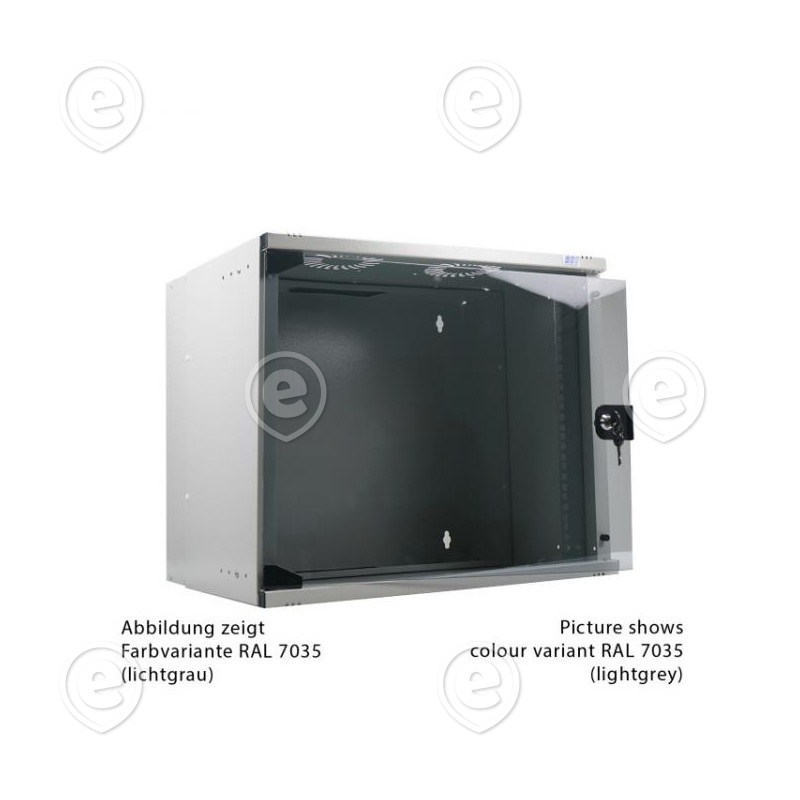

Seinakapp 4U kõrgusega, sügavus 450 mm, tööriistavaba komplekteerimine, RAL7035
picture picture

Seinakapp 4U kõrgusega, sügavus 450 mm, tööriistavaba komplekteerimine, RAL7035

Tootekood: WGF-1904GR.45
EAN: 4049759279196
Kaubamärk:
Ühik: kmpl
Laoseis: Laos
Hind: 80,01 €
kmpl
 Lisa korvi

ARTICLE INFORMATION

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic

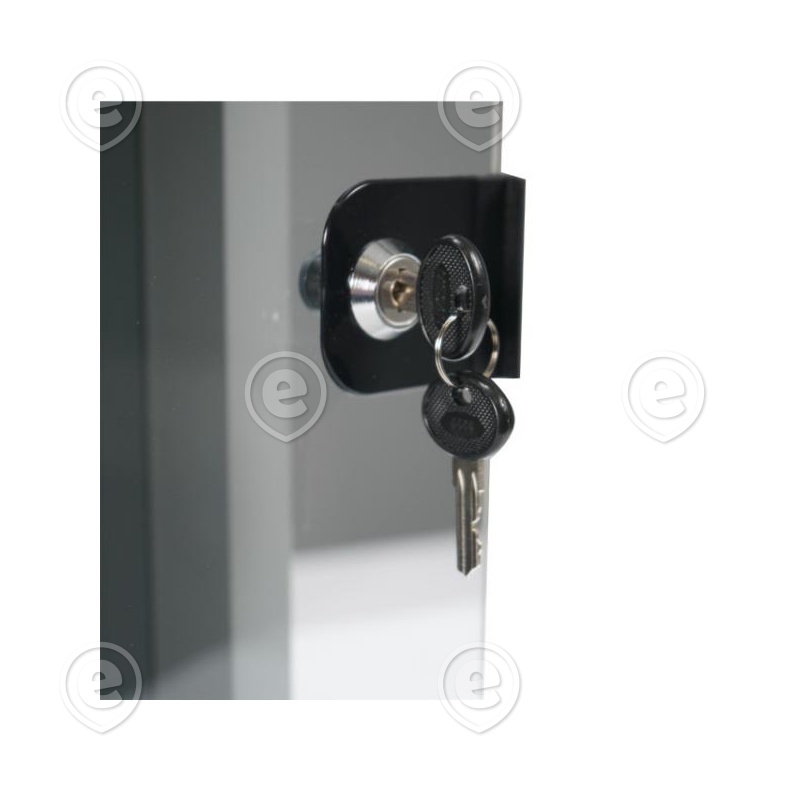

Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm

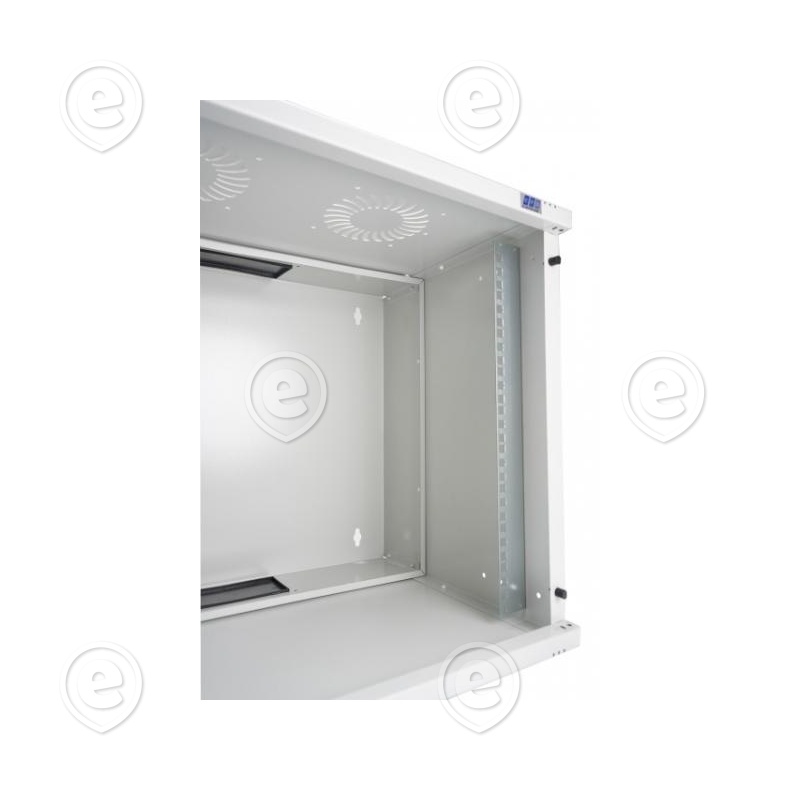

Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle

PRODUCT FEATURES

  • Mounting level
  • Front side
  • Type of profile rail
  • L-shaped
  • Type of ventilation
  • Passive
  • Modular spacing
  • 482.6 mm (19 inch)
  • With roof plate
  • True
  • With earthing
  • True
  • With front door
  • True
  • With sidewall
  • True
  • Demountable
  • True
  • Model
  • With permanent frame
  • Material
  • steel
  • Surface finishing
  • powder coating
  • Degree of protection (IP)
  • IP20
  • Number of doors
  • 1
  • Number of cartons
  • 1

Video



Failid

Kandevõime 50kg
Kõrgus U-des 4U
Sügavus 450mm
Värv Hall
