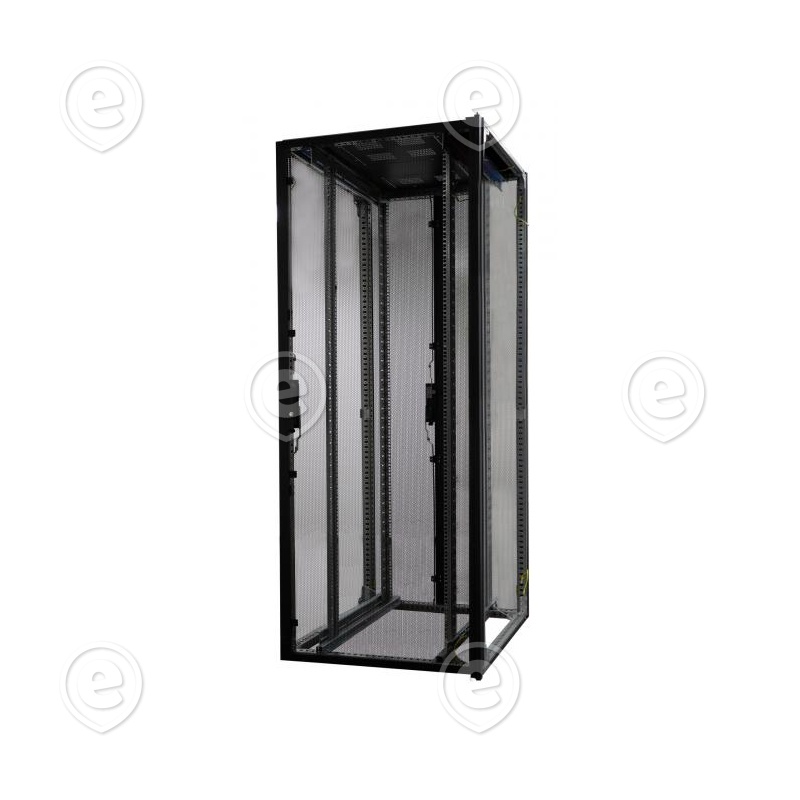

Serverikapp 42U 2000x800x1000mm, perfouks ees ja kahepoolne perrfouks taga RAL9005

ARTICLE INFORMATION

19“ server cabinet according to DIN41494
Steel sheet housing with screwed profile frame, completely pre-assembled, dismountable
Inside front and rear 4 x 19“ profile rails (2 front, 2 rear), galvanised, toolless stepless depth-adjustable
Scaling for depth-adjustment at the profile carrying rails
Contrariwsie numbering of rack units at the 19“ profiles
Front- and rear door steel, perforated, 1-part or 2-part, perforation degree > 80 %, perforation area up to 86 %
1-part door with 5-point locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303, door stop right or left-sided possible
2-part door with 3-point bar locking and turning handle, lockable, incl. profile half-cylinder acc. to DIN18252 / EN1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door opening angle up to 270°
Delivery without side walls, side walls available in 4 variants:
Type A – Side wall, horizontally divided, door opening angle 270°
Type B – Side wall, horizontally divided, enables lateral PDU mounting in cabinet width 600 mm
Type C – Bulkhead, 1-part, for cabinets with levelling feet
Type D – Bulkhead, 1-part, for cabinets without levelling feet
Cabinets stackable side-by-side with stacking set Art.-No. ESV-ANR01
Bulkheads are retrofittable onto already stacked cabinets
Roof toolless mountable, with pre-punched ventilation openings for use of up to 2 fan units (2-fan or 4-fan type)
Roof with cable entries over full cabinet length after toolless removal of the pre-punched lateral covers
Delivery without bottom
Max. load 1500 kg, optionally up to 2400 kg possible
All cabinet parts inside completely grounded
Paint finish RAL7035, light grey / RAL9005, jet black
Protection degree IP20 (except of bottom area)
Scope of supply: 1 x set of captive nuts (PU 20 pcs), 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
