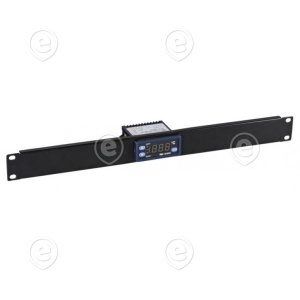

Temp. kontroller, 19", 1U, 2 releed, RAL7035

Temp. kontroller, 19", 1U, 2 releed, RAL7035

Tootekood: EFB691642T.1
EAN: 4049759108526
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 181,30 €
tk
 Lisa korvi

ARTICLE INFORMATION

Control of a fan at overtemperature (via relais 1)
Control of an second fan at overtemperature (via relais 2)
Control of an heater at undertemperature (via relais 1)
Control of a fan at overtemperature (via relais 2)
Digital temperature display (actual value)
Measuring range: -40°C up to +90°C
Outputs: 2 relais, dry, programmable (250 V AC / 2 A)
Free programmable switching temperatures
Display of relay status
Type of sensor: diode, cable length 3 m
Power supply: 230 V / 50 Hz
Connection via rear-sided screw terminals
Recommended Accessory (not included): power cable Euro-Open End with wire-end sleeves Art.-No. EK502AE.x

PRODUCT FEATURES

  • Model
  • Temperature controller
  • Control power
  • 500 VA
  • Indication actual temperature
  • True
  • Switch/lamp for night reduction
  • False
  • Assembly arrangement
  • Complete
  • Mounting method
  • Other
  • Degree of protection (IP)
  • IP20
  • Width
  • 482.6 mm
  • Depth
  • 70.5 mm
  • Nominal voltage
  • 230 V
  • Sensor element
  • Other
  • Contact type
  • Other
  • Electronic controller
  • True
  • Switch for additional heating
  • True
  • Temperature
  • -40 – 90 °C
  • Nominal current
  • 2 A
