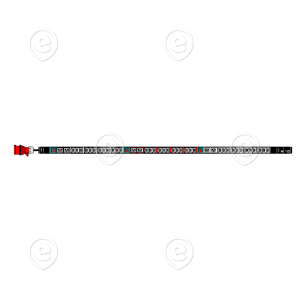

Toitesiin 3x16A 36XC13 + 6xC19 PIM funktsionaalsus, toitejuhe 3m koos pistikuga

Tootekood: MXLR2WNY63
Kaubamärk:

Ühik: tk
Laoseis: Tellimisel

Hind: 732,00 €

Võrdle

36 x Computer socket type IEC320C13 10A/230V
6 x Computer socket type IEC320C19 16A/230V
Sockets divided into three blocks. Each block is powered from a different phase.
Strip in black (similar to RAL9005).
Anodized aluminum housing in natural color.
Strip dimensions without mounting brackets WxHxD: 44x1635x46mm
Strip adapted for vertical mounting in 19" cabinets.
Brackets for mounting the strip in 4 planes.
Power cable 3m long, type H05VV-F.5G2.5mm² in black
Cable terminated with a straight, twisted plug type IEC60309 3x16A/400V.
Maximum load 48A (11,040 W).
3 current load indicators with a 3-digit LED display. One indicator for each phase.
Measurement range 0.1...16A
Measurement accuracy ±2.5%.
Built-in web server with the function of monitoring the current load of individual circuits of the strip.
Optional possibility of monitoring environmental conditions, e.g. temperature, humidity, flooding, etc.
Network interface: Ethernet RJ45 (Ethernet 10/100BaseT)
Protocols: TCP/IP, HTTP, HTTPS, SSL, SNMP v1/v2c, SMTP, Syslog, DHCP.
IP20 protection class.
CE declaration of conformity.
