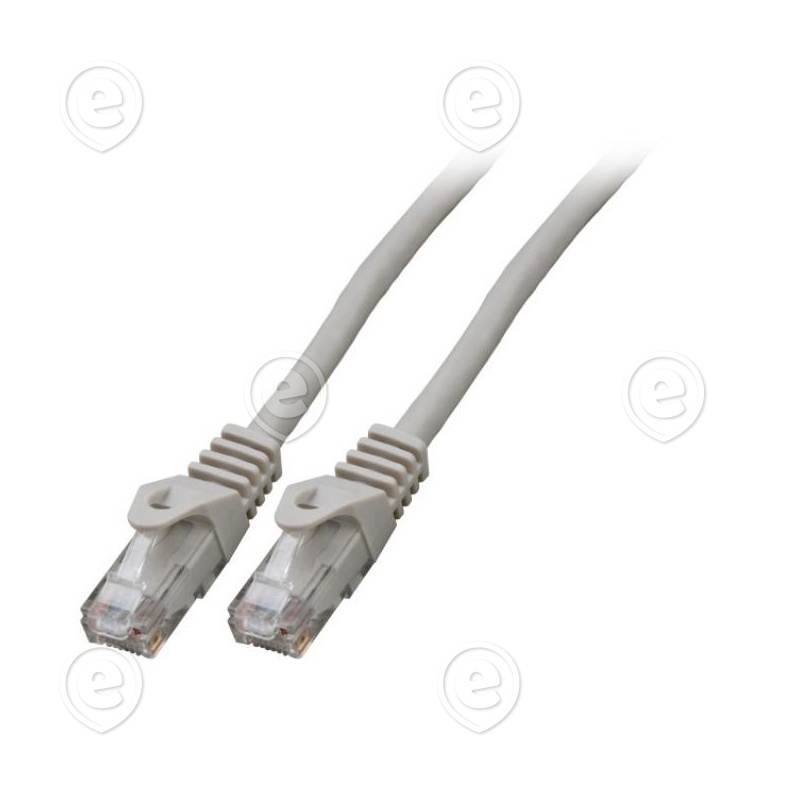

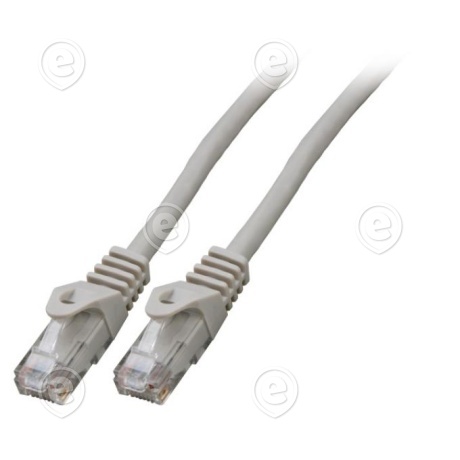

Vahekaabel CAT6 UTP, LSZH, 3,0m (hall) / murdumiskaitsega

Vahekaabel CAT6 UTP, LSZH, 3,0m (hall) / murdumiskaitsega

Tootekood: EFBK8104GR.3
EAN: 4049759081034
Kaubamärk:
Ühik: tk
Laoseis: Laos
Hind: 2,93 €
tk
 Lisa korvi

ARTICLE INFORMATION

The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot

PRODUCT FEATURES

  • Colour outer sheath
  • grey
  • Category
  • 6
  • Type of connector connection 1
  • RJ45 8(8)
  • Type of connector connection 2
  • RJ45 8(8)
  • Connector type
  • RJ45 Standard
  • Contacts
  • Gold plated µ" gold plated
  • Pin assignment
  • 1:1
  • Allocation
  • acc. TIA/EIA 568B
  • Type
  • Unshielded
  • Anti-kink sleeve
  • plugged in
  • Colour anti-kink sleeve
  • grey
  • Locking lever
  • yes
  • Bending radius
  • 30 mm
  • Cable type
  • U/UTP
  • Cable construction
  • 4x2
  • AWG-size
  • 24/7
  • Conductor Material
  • CCA
  • Silicone-free
  • yes
  • Jacket material
  • LSZH
  • Printing
  • Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable
  • Outer diameter of the cable
  • 5.9 mm
  • Flame-retardant
  • yes
  • Halogen-free
  • yes
  • Low smoke
  • yes
  • NVP value
  • - %
  • POE class
  • PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Bandwidth
  • 250MHz
  • Transmission
  • 5Gbit
  • Connector
  • IEC 60603-7-4
Pikkus 3,0m
Standard CAT6E
Tüüp UTP
Värv Hall
