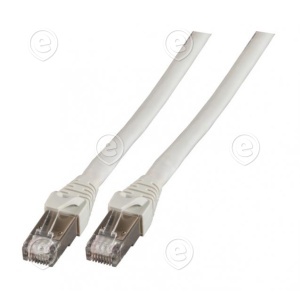

Vahekaabel CAT6A PIMF PVC, AWG24 50,0m

Vahekaabel CAT6A PIMF PVC, AWG24 50,0m

Tootekood: EFBK5537GR.50
EAN: 4049759063375
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 214,13 €
tk
 Lisa korvi

ARTICLE INFORMATION

The UL approved and shielded Cat.6A RJ45 patch cable ensures very good characteristics for 10 Gigabit Ethernet applications and is specially designed for Longlink applications up to 90m. Due to the stranded construction, the cable offers several advantages compared to installation cables with field-attachable RJ45 connectors:
The patch cable is more flexible, has a smaller bending radius and is already pre-assembled. The cast grommet impresses with its slim design and thus simplifies the plugging process in confined spaces.

Cat.6A (TIA) patch cable lengths: Up to 90 m
Class EA (ISO) Patch cable lengths: Up to 80 m
Cross section 4 x 2 x AWG24/7
Jacket material PVC
Cast anti-kink grommet, slim design

PRODUCT FEATURES

  • Colour outer sheath
  • grey
  • Category
  • 6A (TIA)
  • Type of connector connection 1
  • RJ45 8(8)
  • Type of connector connection 2
  • RJ45 8(8)
  • Connector type
  • RJ45 Standard
  • Contacts
  • 50 µ" gold plated
  • Pin assignment
  • 1:1
  • Allocation
  • acc. TIA/EIA 568B
  • Type
  • Shielded
  • Length imprint
  • False
  • Anti-kink sleeve
  • plugged in
  • Colour anti-kink sleeve
  • grey
  • Locking lever
  • yes
  • UL approbated
  • yes
  • Mating cycles
  • 2000
  • Bending radius
  • 34 mm
  • Conductive shield
  • 360° shield contact
  • Cable type
  • S/FTP
  • Cable construction
  • 4x2
  • AWG-size
  • 24/7
  • Conductor Material
  • Copper
  • Jacket material
  • PVC
  • Printing
  • E132276-C(UL) CM 75°C 4PR AWG24/7 CSA LL64151-C CMG 75°C FT4 Cat.6(A) S/FTP PATCH CORD
  • Outer diameter of the cable
  • 6.8 mm
  • Temperature range
  • -10 – 75 °C
  • NVP value
  • - %
  • POE class
  • PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Bandwidth
  • 500MHz
  • Transmission
  • 10Gbit
  • Connector
  • IEC 60603-7-51
