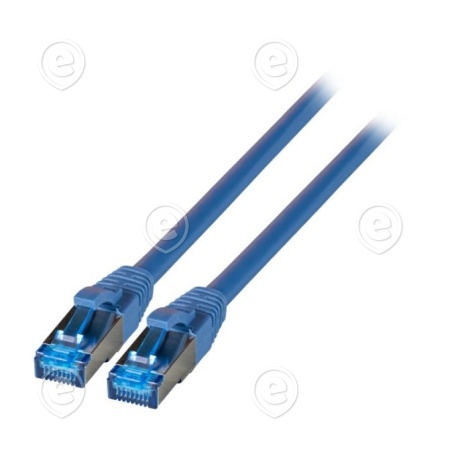

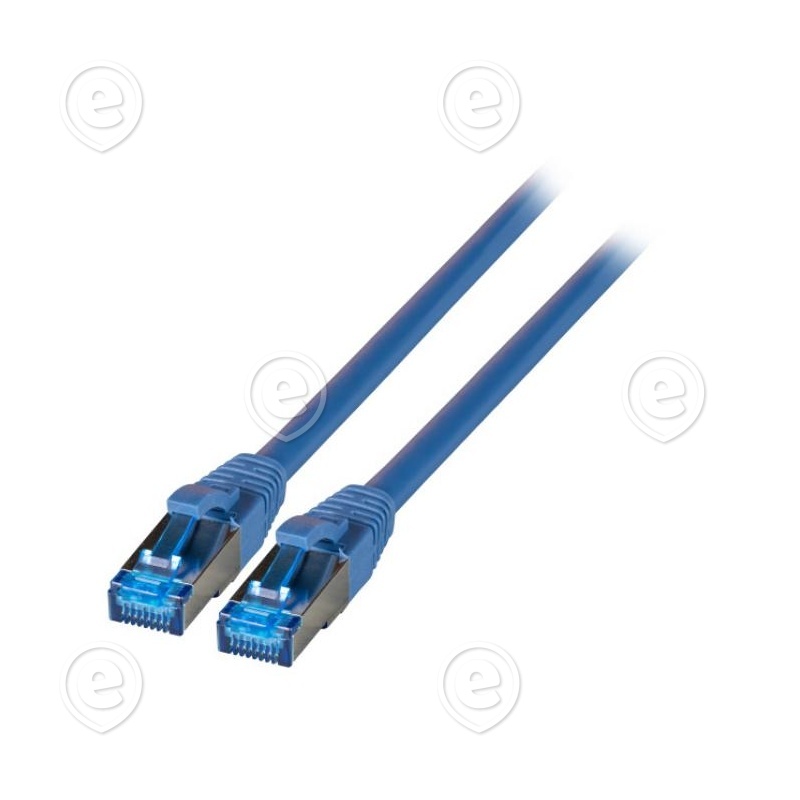

Vahekaabel CAT6A S/FTP 10G 0,5m (sinine) Superflex
EAN: 4049759186869
Kaubamärk:
Ühik: tk
Laoseis: Laos
ARTICLE INFORMATION
The shielded Cat.6A RJ45 patch cable with component certification from the GHMT ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Very flexible TPE/LSZH outer sheath superflex
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot
PRODUCT FEATURES
Colour outer sheath
blue
Area of Application
Structured cabling;Industrial Ethernet;Data center
Category
6A (IEC)
Type of connector connection 1
RJ45 8(8)
Type of connector connection 2
RJ45 8(8)
Connector type
RJ45 Standard blue
Contacts
50 µ" gold plated
Pin assignment
1:1
Allocation
acc. TIA/EIA 568B
Type
Shielded
Length imprint
yes
Anti-kink sleeve
plugged in
Colour anti-kink sleeve
blue
Locking lever
True
Mating cycles
2000
Bending radius
>32.5 mm
Conductive shield
360° shield contact
Suitable for degree of protection (IP)
IP20
Raw cable
Cat.7
Cable type
S/FTP
Cable construction
4x2
AWG-size
26/7
Conductor Material
Copper
Silicone-free
yes
Jacket material
TPE/LSZH
Printing
Cat.6A Patchcord SUPERFLEX S/FTP
Outer diameter of the cable
6.5 mm
Halogen-free
yes
Low smoke
acc. IEC61034
Temperature range
-20 – 75 °C
NVP value
- %
Impedance
100 ±25 Ω
Conductor resistance DC
142 Ω/km
Loop resistance
284 Ω/km
Resistance unbalance
2 %
Insulation resistance
100 MΩ
Contact resistance
30 mΩ
Test voltage
1000 V DC, 1min
POE class
PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Current capacity
max. 1 A
Operating-/ tempering voltage
max. 50 V DC
Bandwidth
500MHz
Transmission
10Gbit
Cabling Standard
ISO/IEC 11801;ANSI/TIA-568-C.2;EN50173
Connector
IEC 60603-7-51
| Pikkus | 0,5m |
| Standard | CAT6A |
| Tüüp | FTP |
| Värv | Sinine |
