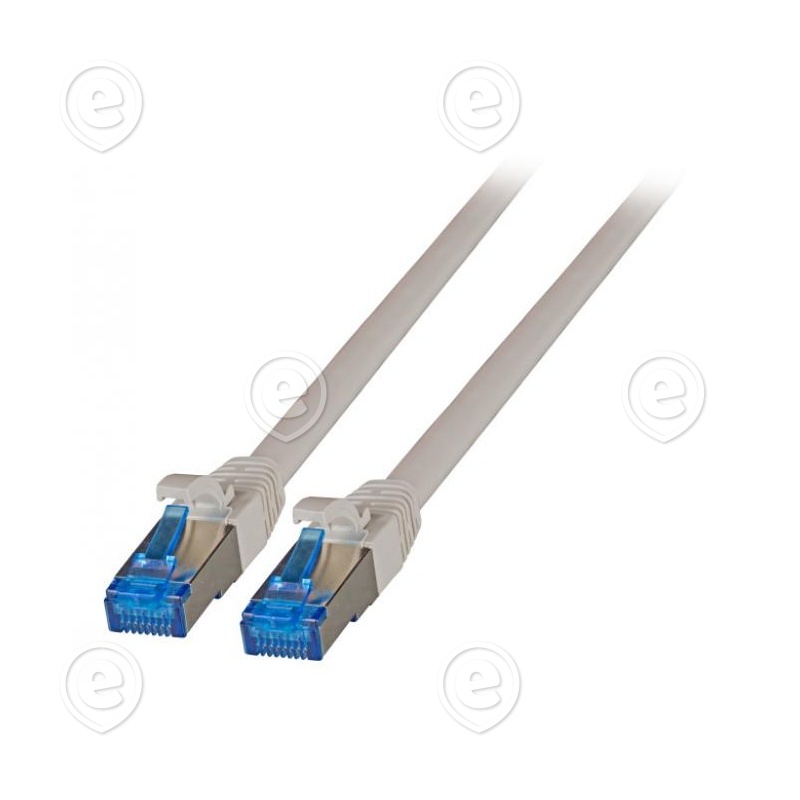

Vahekaabel CAT6A S/FTP 10G 1,5m (hall) Superflex
Hind:
4,50 €
ARTICLE INFORMATION
The shielded Cat.6A RJ45 patch cable with component certification from the GHMT ensures excellent performance for 10 Gigabit Ethernet applications. The TPE outer sheath makes the cable highly flexible and thus easier to handle. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.Very flexible TPE/LSZH outer sheath superflex
Cross section 4 x 2 x AWG26 / 7
Moulded grommet, slim design
Length imprint on the boot
PRODUCT FEATURES
- Colour outer sheath
- grey
- Area of Application
- Structured cabling;Industrial Ethernet;Data center
- Category
- 6A (IEC)
- Type of connector connection 1
- RJ45 8(8)
- Type of connector connection 2
- RJ45 8(8)
- Connector type
- RJ45 Standard blue
- Contacts
- 50 µ" gold plated
- Pin assignment
- 1:1
- Allocation
- acc. TIA/EIA 568B
- Type
- Shielded
- Length imprint
- yes
- Anti-kink sleeve
- plugged in
- Colour anti-kink sleeve
- grey
- Locking lever
- True
- Mating cycles
- 2000
- Bending radius
- >32.5 mm
- Conductive shield
- 360° shield contact
- Suitable for degree of protection (IP)
- IP20
- Raw cable
- Cat.7
- Cable type
- S/FTP
- Cable construction
- 4x2
- AWG-size
- 26/7
- Conductor Material
- Copper
- Silicone-free
- yes
- Jacket material
- TPE/LSZH
- Printing
- Cat.6A Patchcord SUPERFLEX S/FTP
- Outer diameter of the cable
- 6.5 mm
- Halogen-free
- yes
- Low smoke
- acc. IEC61034
- Temperature range
- -20 – 75 °C
- NVP value
- - %
- Impedance
- 100 ±25 Ω
- Conductor resistance DC
- 142 Ω/km
- Loop resistance
- 284 Ω/km
- Resistance unbalance
- 2 %
- Insulation resistance
- 100 MΩ
- Contact resistance
- 30 mΩ
- Test voltage
- 1000 V DC, 1min
- POE class
- PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
- Current capacity
- max. 1 A
- Operating-/ tempering voltage
- max. 50 V DC
- Bandwidth
- 500MHz
- Transmission
- 10Gbit
- Cabling Standard
- ISO/IEC 11801;ANSI/TIA-568-C.2;EN50173
- Connector
- IEC 60603-7-51
Pikkus | 1,5m |
Standard | CAT6A |
Tüüp | FTP |
Värv | Hall |
