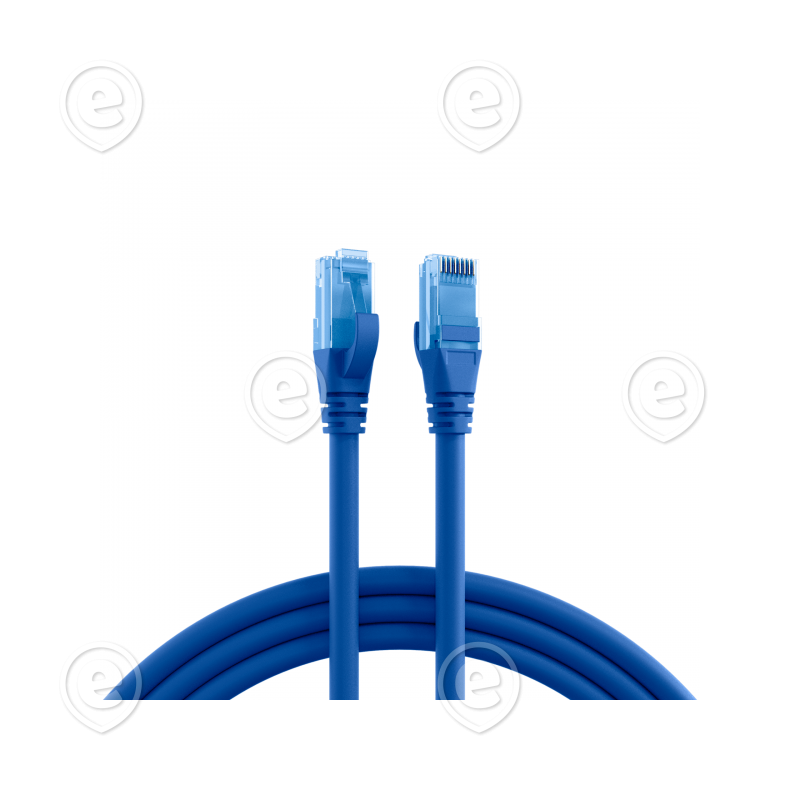

Vahekaabel CAT6A UTP 1,0m (sinine) INFRALAN seeria

Vahekaabel CAT6A UTP 1,0m (sinine) INFRALAN seeria

Tootekood: EFBK8109BL.1
EAN: 4049759246860
Kaubamärk:
Ühik: tk
Laoseis: Tellimisel
Hind: 2,77 €
tk
 Lisa korvi

ARTICLE INFORMATION

The unshielded Cat.6A RJ45 premium patch cable ensures very good characteristics for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

Cross section 4 x 2 x AWG24/7
Cast anti-kink grommet with length imprint, slim design


PRODUCT FEATURES

  • Colour outer sheath
  • blue
  • Category
  • 6A (TIA)
  • Type of connector connection 1
  • RJ45 8(8)
  • Type of connector connection 2
  • RJ45 8(8)
  • Connector type
  • RJ45 Standard blue
  • Contacts
  • 50 µ" gold plated
  • Pin assignment
  • 1:1
  • Allocation
  • acc. TIA/EIA 568B
  • Type
  • Unshielded
  • Anti-kink sleeve
  • plugged in
  • Colour anti-kink sleeve
  • grey
  • Locking lever
  • yes
  • Mating cycles
  • 2000
  • Bending radius
  • 30 mm
  • Cable type
  • U/UTP
  • Cable construction
  • 4x2
  • AWG-size
  • 24/7
  • Conductor Material
  • Copper
  • Jacket material
  • LSZH
  • Printing
  • Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet***
  • Outer diameter of the cable
  • 6.0 mm
  • Flame-retardant
  • acc. IEC60332-1
  • Halogen-free
  • yes
  • Low smoke
  • yes
  • Temperature range
  • 0 – 60 °C
  • NVP value
  • - %
  • POE class
  • PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Bandwidth
  • 500MHz
  • Transmission
  • 10Gbit
  • Cabling Standard
  • ISO/IEC 11801
  • Connector
  • IEC 60603-7-41
Pikkus 1,0m
Standard CAT6A
Tüüp UTP
Värv Sinine
